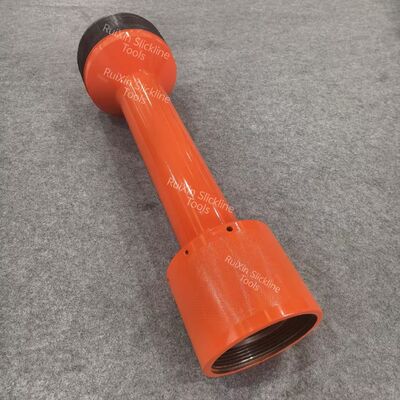

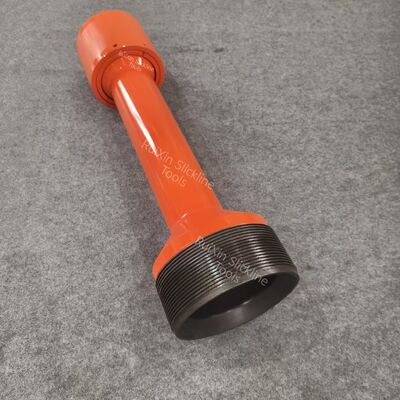

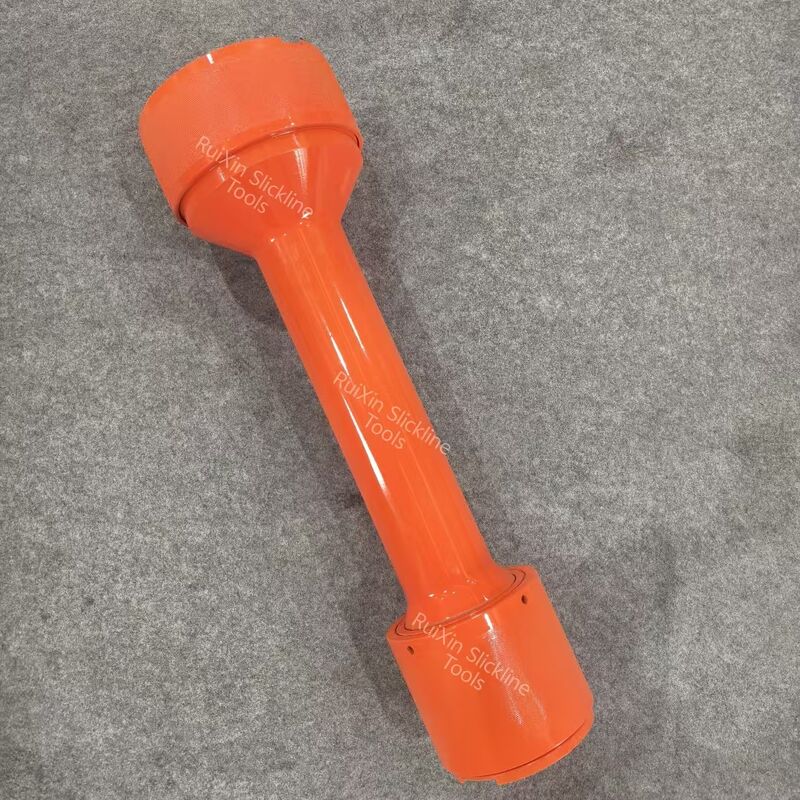

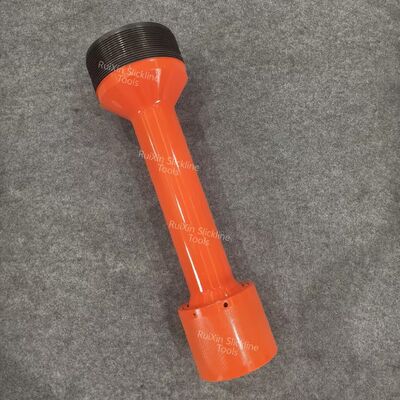

Quick Union Adapter ID 4inch 70Mpa H2S Services Wireline Pressure Control Equipment

Quick Union Adapter ID 4inch  70Mpa  H2S Services Wireline Pressure Control Equipment

 Introduction

          The union adapter is a short section that connects two different types of threaded connections and can seal and withstand pressure.
The union adapter is mainly composed of the body, the union nut, and the O-ring.
The body is a pipe that can withstand high pressure. One end has the union nut connector, and the other end has the O-ring sealing head.
The union nut is made of alloy steel and has a socket for a wrench. When installing, it can be tightened by using a hook-end wrench.

Technical specification

Diameter  4inch

Working pressure  70Mpa

Strength Test Pressure   105Mpa

Connection type  11-1/2-4ACME×8-3/4-4ACME

Any size can be customized according to customer requirements.

Usage instructions

1. Align the external fitting of the plug with the inline fitting and tighten the plug nut;

2. Use a socket wrench to tighten the plug nut.

4. Maintenance and servicing:

Apply lubricating grease to the threads and sealing head, then store them with the retaining screws.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
